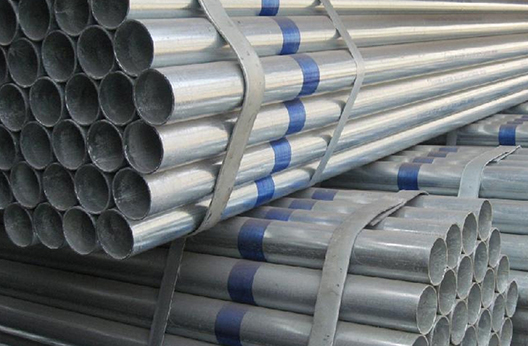

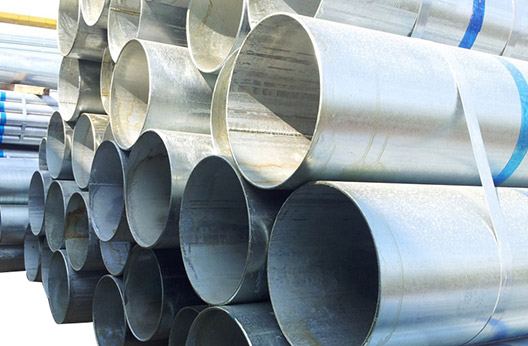

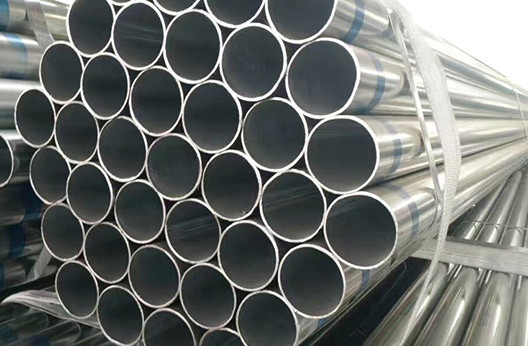

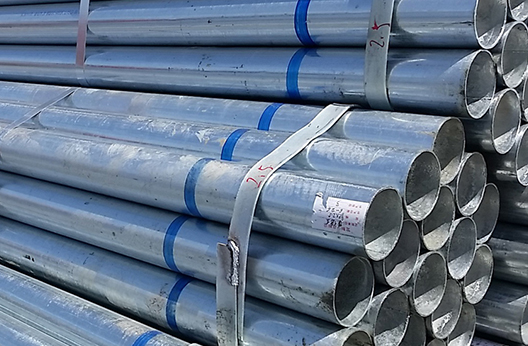

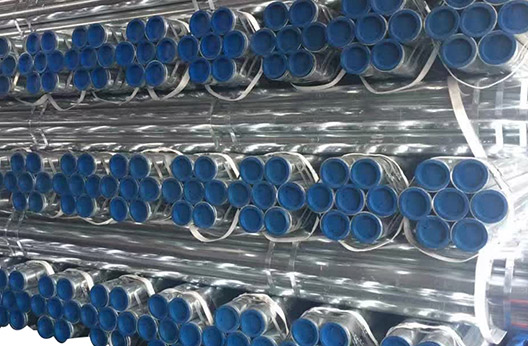

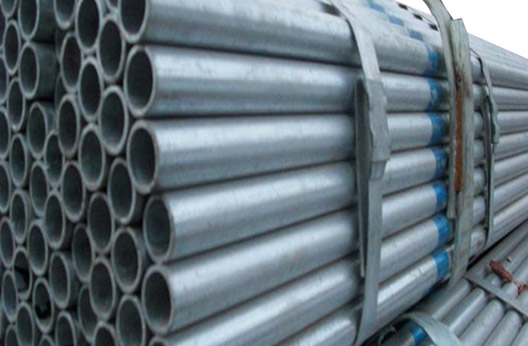

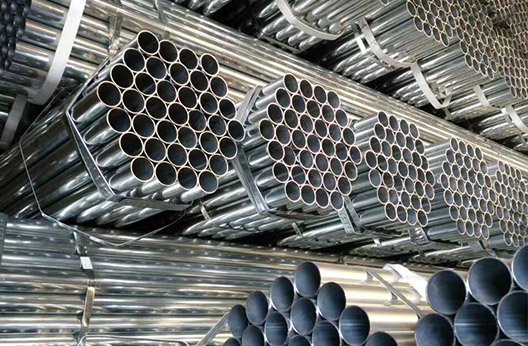

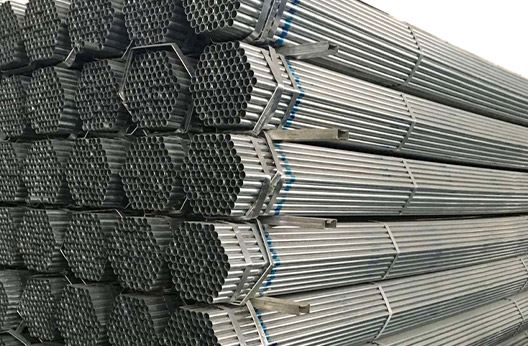

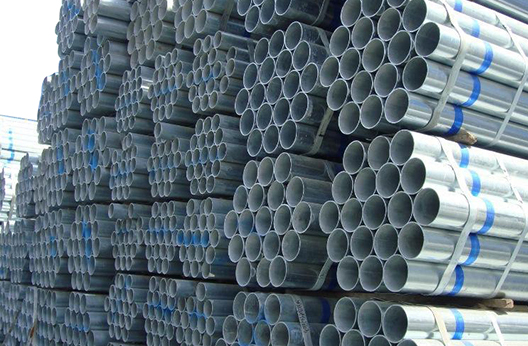

● Pre - galvanized pipe : pre-galvanized pipe is made of hot dipped galvanized steel strip directly ,
zinc coating : 60 – 120g/m2
Usage: Used for low pressure liquid delivery, such as water, gas, and oil，fence，conduit，green house etc.
Standard: GB/T3091 – 2001 ,BS1387 – 1985 , DIN EN10025 ,EN10219 , JIS G3444:2004 , ASTM A53
Steel Grade: GB/T3091 – 2001:Q195 , Q235
BS1387 – 1985 , DIN EN10025 EN10219 :S235JR
JIS G3444:2004:STK400
ASTM A53: GR. A , GR. B,
Size:
Outer Diameter | Wall Thickness | Length | |
Inch | mm | mm | meter |
1/2" | 20mm | 0.8mm-2.0mm | 0.3m-12m |
3/4" | 25mm | 0.8mm-2.0mm | 0.3m-12m |
1" | 32mm | 0.8mm-2.0mm | 0.3m-12m |
1-1/4" | 40mm | 0.8mm-2.0mm | 0.3m-12m |
1-1/2" | 47mm | 1.0mm-2.5mm | 0.3m-12m |
2" | 60mm | 1.0mm-2.5mm | 0.3m-12m |
2-1/2" | 75mm | 1.0mm-2.5mm | 0.3m-12m |
3" | 88mm | 1.0mm-2.5mm | 0.3m-12m |
4" | 113mm | 1.0mm-2.5mm | 0.3m-12m |
5” | 140mm | 1.0mm-2.5mm | 0.3m-12m |
6” | 165mm | 1.0mm-2.5mm | 0.3m-12m |
