3mm Thick Hot Dip Galvanized Steel Plate for Ship Building

Galvanized steel plate is to prevent surface from corrosion and prolong the service life of the steel surfaces, coated with a layer of metal .zinc the king of zinc coated thin plate called galvanized sheet..

Hot-dip galvanized is hot – rolled steel coils, or cold-rolled steel as a substrate, after a continuous hot-dip galvanized process and then produced. The cross-section to a rectangular plate which for supply is hot dip galvanized sheet; by the take –up in order to supply hot roll galvanized volumes. Therefore, hot-dip galvanizing can be classified into hot-rolled coils galvanized coils and cold rolled coils, which are mainly used in construction, housed hold appliances, automobiles, container, transport and family business and other fields, in particular, steel construction, automobile manufacturing, steel silo manufacturing and other industries.


3mm Thick Hot Dip Galvanized Steel Plate for Ship Building
3mm Thick Hot Dip Galvanized Steel Plate for Ship Building
3mm Thick Hot Dip Galvanized Steel Plate for Ship Building
3mm Thick Hot Dip Galvanized Steel Plate for Ship Building
3mm Thick Hot Dip Galvanized Steel Plate for Ship Building
3mm Thick Hot Dip Galvanized Steel Plate for Ship Building
3mm Thick Hot Dip Galvanized Steel Plate for Ship Building
3mm Thick Hot Dip Galvanized Steel Plate for Ship Building

Specifications:

Thickness: 0.13mm TCT up to 4.0mm TCT.

Width: 600mm up to 1250mm.

Zinc Coating: 40-275G/M2.

Chromated, Dry, Skin-passed, Tension Level, Shining. Oiled or Unoiled.

Regular Spangle, minimum Spangle, Large Spangle, Zero Spangle.

Temper: Full Hard (85-95 HRB; G550). Commercial Quality (50-75 HRB; G350).

Coil Weight: 3-6 MT.

Coil ID: 508mm or 610mm.

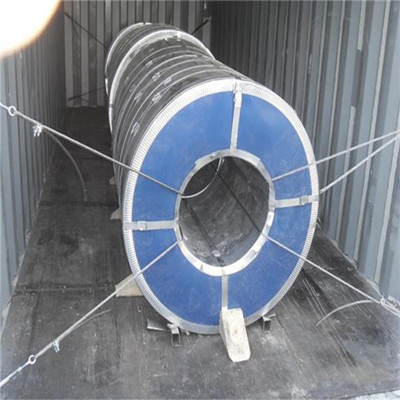

Shipment: By Bulk or By 20GP Container.

Waterproof Standard Export Packing.

Payment Terms: by T/T or L/C at Sight.

Delivery: 15 Days.



STEEL GRADE

CHEMICAL
COMPOSITION %

MECHANIC
PROPERTY

C.B OF
COATING

COATING

C

Si

Mn

S

P

T.S

Y.S

E.L



x103

x103

x102

x103

x103

Mpa

Mpa

%

d=0   180°

G/M²

JIS G3302 SGCC

12

30

41

31

21

480

300

13

OK

Z60-150

JIS G3302 SGCH

12

10

21

18

8

680

650


OK

Z60-150

ASTM A653 CS.B

20

30

60

35

30

386

205~380

20

OK

Z80-275

DX51D+Z

29

21

18

1.8

11

355

245

38

OK

Z80-275

G550

20

6

73

5

17

715

654

8

OK

Z80-275
