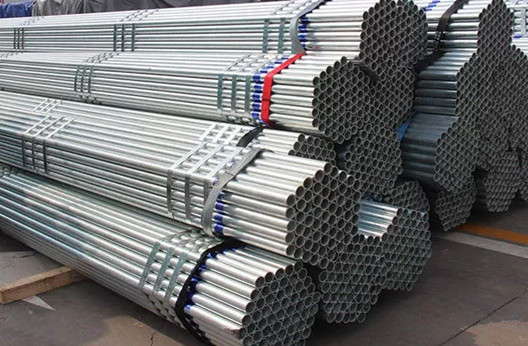

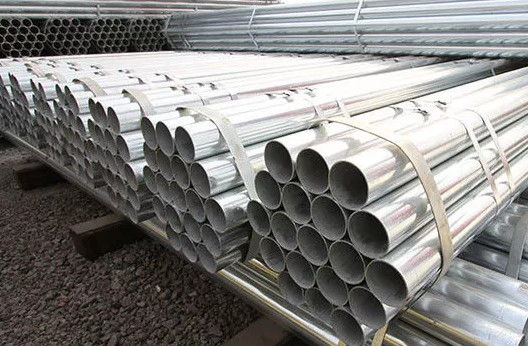

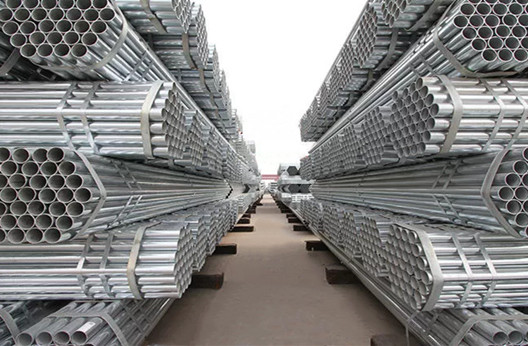

1 inch 3 inch Hot Dip Galvanized Round Steel Pipe

● Hot dipped galvanized pipe : hot dipped galvanized pipe owns thicker zinc coating than pre-galvanized pipe ,black pipes will be dipped into zinc pool for galvanized.

Zinc coating :275 – 600g /m2


Standard: GB/T3091 – 2001 ,BS1387 – 1985 , DIN EN10025 ,EN10219 , JIS G3444:2004 , ASTM A53


1 inch 3 inch Hot Dip Galvanized Round Steel Pipe
1 inch 3 inch Hot Dip Galvanized Round Steel Pipe
1 inch 3 inch Hot Dip Galvanized Round Steel Pipe
1 inch 3 inch Hot Dip Galvanized Round Steel Pipe
1 inch 3 inch Hot Dip Galvanized Round Steel Pipe
1 inch 3 inch Hot Dip Galvanized Round Steel Pipe

Steel Grade:

GB/T3091 – 2001:  Q195,Q235 , Q345
BS1387 – 1985 , DIN EN10025 ,EN10219 :S235JR ,S275JR,S355JR, S355J2H
JIS G3444:2004: STK400 ,STK500
ASTM A53: GR. A , GR. B, GR. C , GR. D


Size:


Outer Diameter

Wall Thickness

Length

Inch

mm

mm

meter

1/2"

21.3mm

0.6mm-3.0mm

0.3m-12m

3/4"

26.9mm

0.6mm-3.0mm

0.3m-12m

1"

33.4mm

1.0mm-3.0mm

0.3m-12m

1-1/4"

42.3mm

1.0mm-4.0mm

0.3m-12m

1-1/2"

48.3mm

1.0mm-4.0mm

0.3m-12m

2"

60.3mm

1.5mm-4.0mm

0.3m-12m

2-1/2"

76.1mm

1.5mm-4.0mm

0.3m-12m

3"

88.9mm

1.5mm-9.5mm

0.3m-12m

4"

114.3mm

2.0mm-9.5mm

0.3m-12m

5"

141.3mm

3.0mm-9.5mm

0.3m-12m

6"

168.3mm

3.0mm-12.0mm

1.0m-12m

8"

219.1mm

3.2mm-12.0mm

1.0m-12m

10"

273mm

3.2mm-12.0mm

1.0m-12m

12"

323.8mm

6.0mm-15.0mm

1.0m-12m

14"

355.6mm

8.0mm-15.0mm

1.0m-12m

16"

406.4mm

8.0mm-20.0mm

1.0m-12m

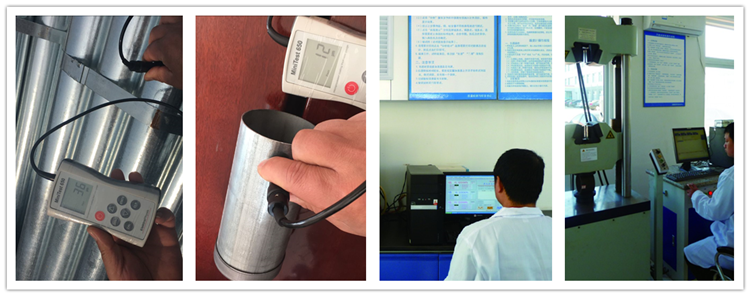

Product Test:

product test.png
